Description
Designed to maximize uptime of medical equipment while minimizing battery fleet cost, the Battery Analyzers service lithium, nickel and lead acid batteries on the same device with a quick change of an adapter. Featuring Boost to awaken sleeping Li-ion batteries and custom programs to prepare Li-ion batteries for shipment, the Battery Analyzers assist the user in measuring battery capacity, spot checking spare battery capacity after daylong use and applying calibration to improve fuel gauge readings. The Battery Analyzers are offered in three styles: 07-720-0100, 07-740-0100 and 07-740-1100. Manufactured with two-stations and 40 watts of charge power at 4 amps per station to ensure quick service of larger batteries, the 07-720-0100 Battery Analyzer has a battery voltage range of 1.2–16V nominal, ability to charge and discharge current up to 4 amps per station, maximum charge power of 40 watts per station and maximum discharge power of 35 watts.

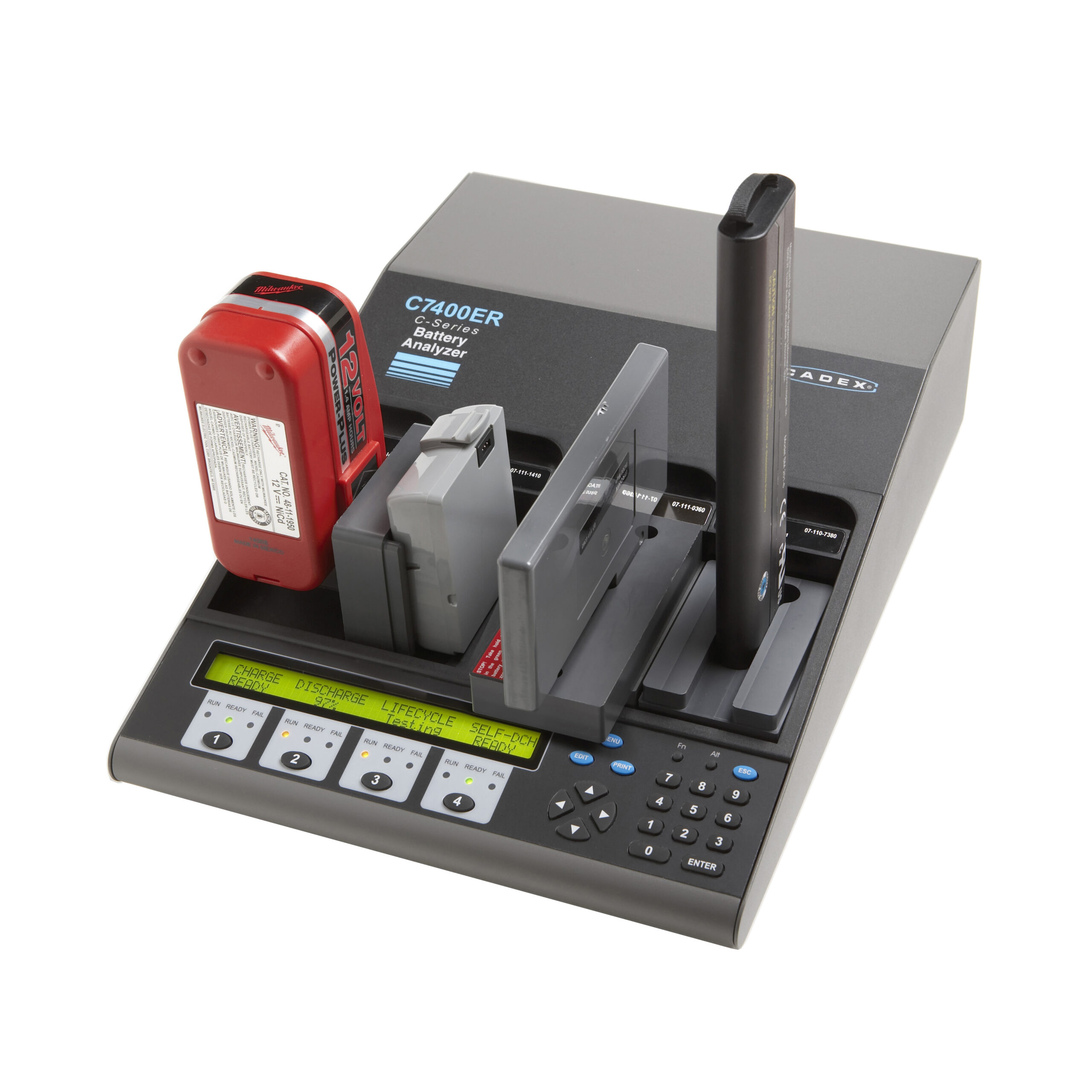

Built with four-stations and 80 watts of charge power, the added stations increase throughput and improve flexibility in accommodating batteries that require immediate service. The 07-740-0100 Battery Analyzer has a battery voltage range of 1.2–16V nominal, ability to charge and discharge current up to 4 amps per station, maximum charge power of 55 watts per station and maximum discharge power of 35 watts. Equipped with six amps per station, the four-station 07-740-1100 Battery Analyzer can service 36-volt batteries and has 170 watts of continuous charge power that satisfies most service requirements. The 07-740-1100 Battery analyzer has a battery voltage range of 1.2-36V nominal, ability to charge and discharge current up to 6 amps per station, maximum charge power of 75 watts per station and maximum discharge power of 75 watts. Provided with each battery analyzer is a battery model adapter form that allows you to list your contact information, as well as the manufacturer and battery model of the batteries used in your facility to help us provide you with the correct adapters. The Battery Analyzers are available for individual purchase.
