FIS-007 Flexible Inspection Scope

FIS-007 Flexible Inspection Scope

$1.00

Designed to visually inspect internal channels of potentially soiled or damaged items, the FIS-007 provides enhanced light, vision, and magnification.

Description

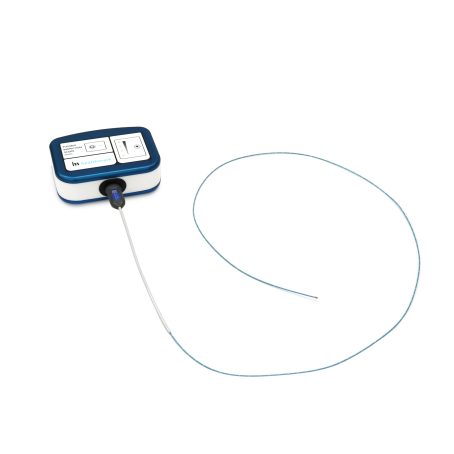

Designed to visually inspect internal channels of potentially soiled or damaged items, the FIS-007 provides enhanced light, vision, and magnification. This borescope also offers users the option to document photos and videos of lumens and crevices not visible to the unaided eye. The FIS-007 has a modular design with interchangeable flexible inspection scope attachments available in diameters of 1.06mm and 1.9mm. These scopes have a working length of 110cm and attach to a 13.3W x 9.9L x 4.7H cm control box, allowing for light level adjustments, image capture*, and video recording*. The 1.06mm scope is designed to inspect internal channels of 1.1mm in diameter or larger, and the 1.9mm scope is designed to inspect internal channels of 2.0mm in diameter or larger.

*These features are only available for the USB control box with FIS-007 software, which is included and installs on Windows 10 PC’s

Product Description

Designed to visually inspect internal channels of potentially soiled or damaged items, the FIS-007 provides enhanced light, vision, and magnification. This borescope also offers users the option to document photos and videos of lumens and crevices not visible to the unaided eye. The FIS-007 has a modular design with interchangeable flexible inspection scope attachments available in diameters of 1.06mm and 1.9mm. These scopes have a working length of 110cm and attach to a 13.3W x 9.9L x 4.7H cm control box, allowing for light level adjustments, image capture*, and video recording*. The 1.06mm scope is designed to inspect internal channels of 1.1mm in diameter or larger, and the 1.9mm scope is designed to inspect internal channels of 2.0mm in diameter or larger. *These features are only available for the USB control box with FIS-007 software, which is included and installs on Windows 10 PC’s

Support Documents

FIS-007 Brochure
Product Brochures
Dec 16, 2021
Prosys Brochure
Product Brochures
May 05, 2022
FIS-007 Brochure
Specification Sheet
Dec 13, 2021
Apr 29, 2022
FIS-007 Packaging Instructions
Packaging Instructions
Mar 14, 2022
FIS-007 Mobile Cart IFU
Compatibility Guide
Mar 14, 2022
