FIS-007 Flexible Inspection Scope

FIS-007 Flexible Inspection Scope

$1.00

Designed to visually inspect internal channels of potentially soiled or damaged items, the FIS-007 provides enhanced light, vision, and magnification.

Description

Designed to visually inspect internal channels of potentially soiled or damaged items, the FIS-007 provides enhanced light, vision, and magnification. This borescope also offers users the option to document photos* and videos* of lumens and crevices not visible to the unaided eye. The FIS-007 has a modular design with interchangeable Flexible Inspection Scope attachments available in diameters of 1.06mm (CT-102) and 1.9mm (CT-101, CT-103, CT-104). These scopes have a working length of 110cm (CT-101 & CT-102), 60cm (CT-103) and 200cm (CT-104) and attach to a control box which allows light level adjustments. The 1.06mm scope is designed to inspect internal channels of 1.1mm in diameter or larger, and the 1.9mm scopes are designed to inspect internal channels of 2.0mm in diameter or larger.

Healthmark’s Scope Viewer Software is included with the USB Control Box version of the FIS-007 and is compatible with Windows 10 & 11 PCs. The Scope Viewer Software allows the user to easily capture and save photos and videos for future reference. An image reference window also allows the user to display a previously saved image to reference alongside of the live view of an item being inspected. The Scope Viewer
Software includes the option to add a file name prefix to captured images and videos for improved file organization.

*These features are only available for the USB control box with FIS-007 software, which is included and installs on Windows 10 & 11 PCs

Product Description

Designed to visually inspect internal channels of potentially soiled or damaged items, the FIS-007 provides enhanced light, vision, and magnification. This borescope also offers users the option to document photos* and videos* of lumens and crevices not visible to the unaided eye. The FIS-007 has a modular design with interchangeable Flexible Inspection Scope attachments available in diameters of 1.06mm (CT-102) and 1.9mm (CT-101, CT-103, CT-104). These scopes have a working length of 110cm (CT-101 & CT-102), 60cm (CT-103) and 200cm (CT-104) and attach to a control box which allows light level adjustments. The 1.06mm scope is designed to inspect internal channels of 1.1mm in diameter or larger, and the 1.9mm scopes are designed to inspect internal channels of 2.0mm in diameter or larger. Healthmark’s Scope Viewer Software is included with the USB Control Box version of the FIS-007 and is compatible with Windows 10 & 11 PCs. The Scope Viewer Software allows the user to easily capture and save photos and videos for future reference. An image reference window also allows the user to display a previously saved image to reference alongside of the live view of an item being inspected. The Scope Viewer Software includes the option to add a file name prefix to captured images and videos for improved file organization. *These features are only available for the USB control box with FIS-007 software, which is included and installs on Windows 10 & 11 PCs

Specifications

Flexible Inspection Scope Options:

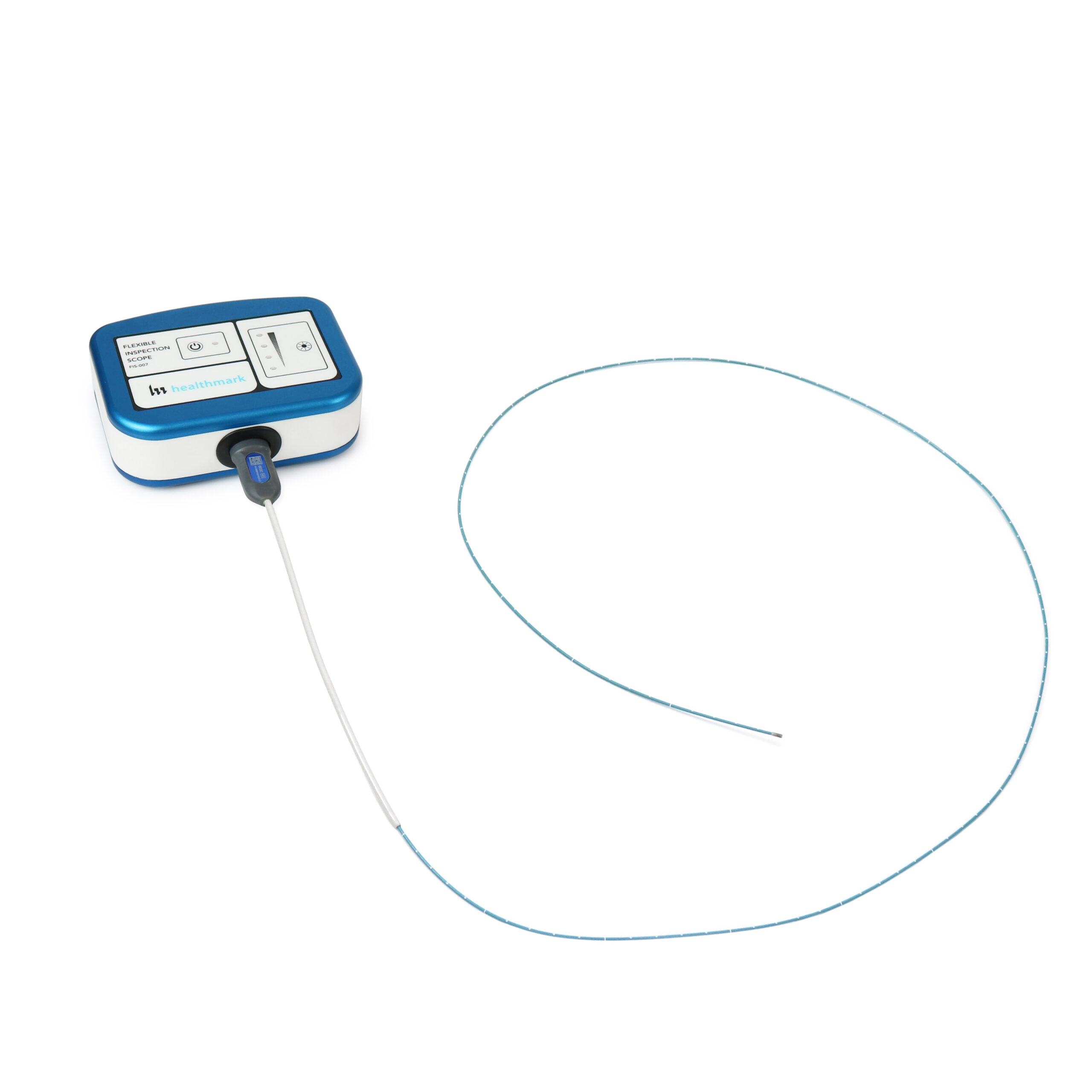

CT-101: 1.9mm Diameter, 110cm Length

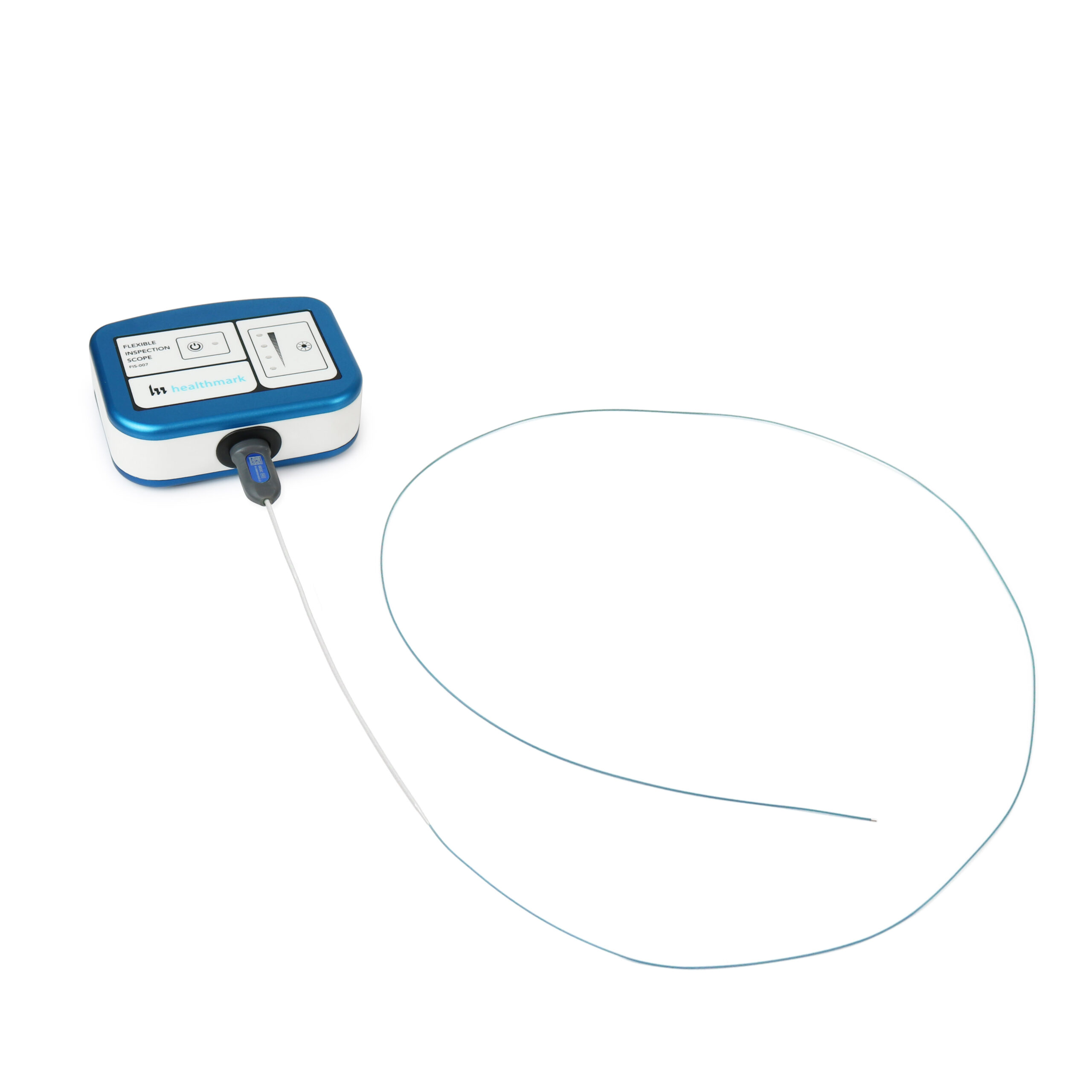

CT-102: 1.06mm Diameter, 110cm Length

CT-103: 1.9mm Diameter, 60cm Length

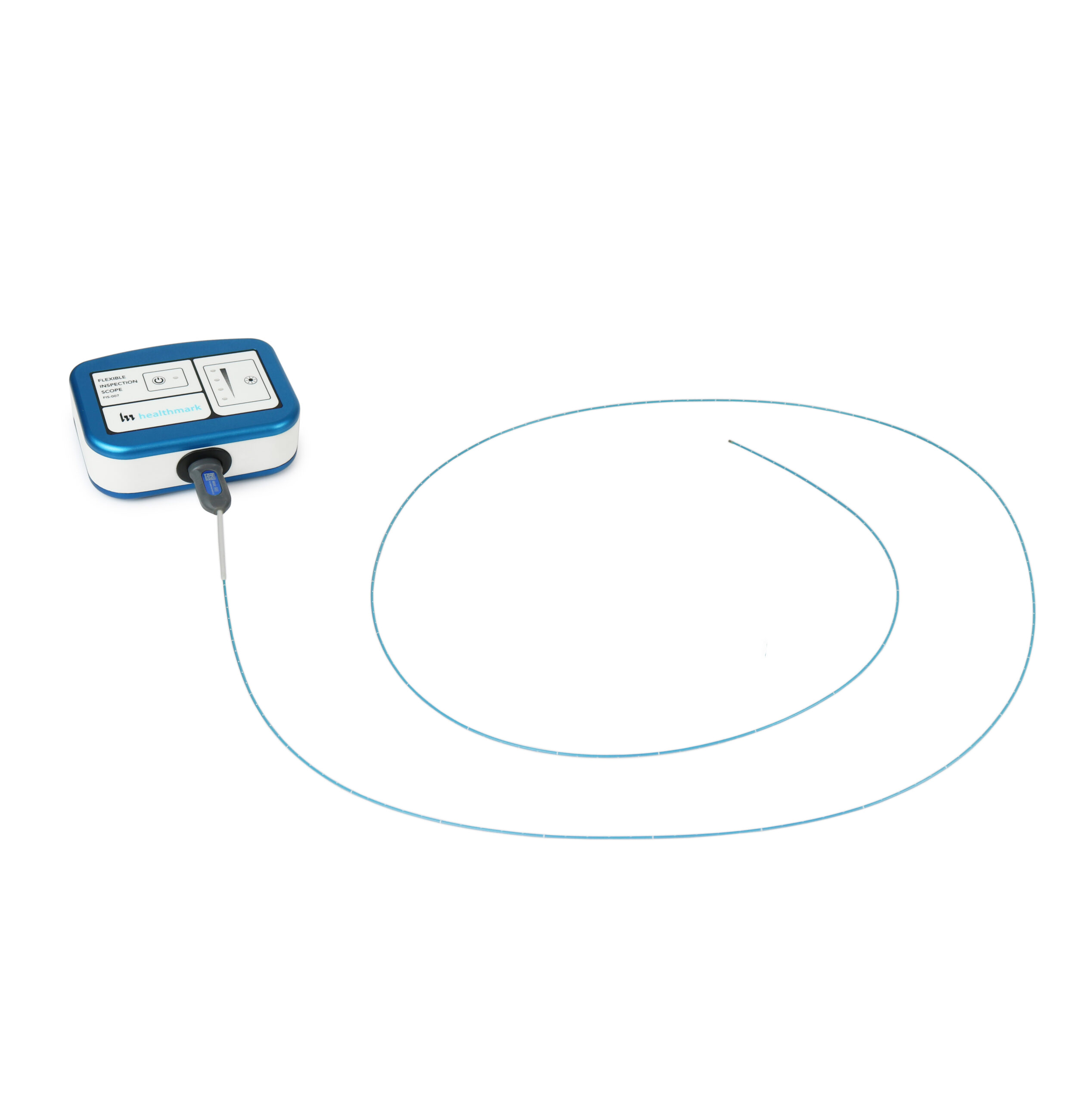

CT-104: 1.9mm Diameter, 200cm Length

Spec Detail
